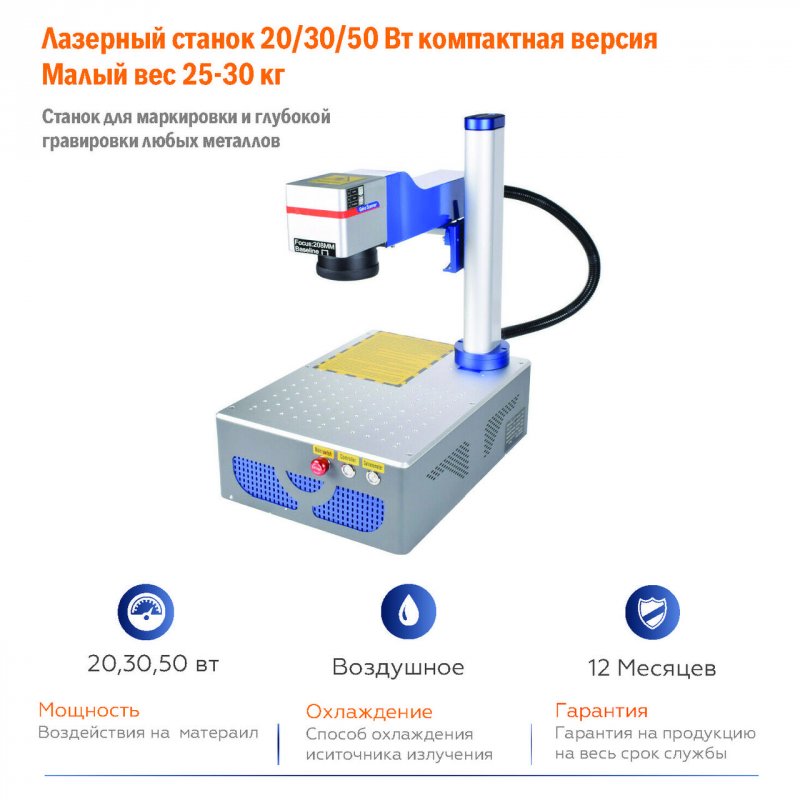

A laser marker is a device that uses laser radiation to remove the surface layer from various types of surfaces, applying a pattern to the surface (the depth of the cut is determined by the operator, but it cannot be greater than the device is capable of).
A standard laser marker is equipped with a fiber laser source and a galvanometer to increase the marking speed. The machine is small in size, air-cooled, does not require specific maintenance and operating skills.
Marking large volumes of small and medium-sized products in just a few seconds.
Suitable for working with metals, plastics, jewelry, leather.
Application areas:
- Mechanical engineering/instrument making/electronics.
- Medical industry.
- Jewelry manufacturing.
- Applying bar codes, QR codes.
- Making plastic cards.
Advertising and souvenirs.
|
Material |
Fiber laser |
|
Stainless steel |
✓ |
|
Aluminum |
✓ |
|
ABS plastic |
✓ |
|
Brass |
✓ |
|
Carbon fiber |
✓ |
|
Carbon nanotube |
✓ |
|
Chrome steel |
✓ |
|
Colored delrin |
✓ |
|
Copper |
✓ |
|
Diallyl phthalate |
✓ |
|
Fiberglass |
✓ |
|
Teflon |
✓ |
|
Metal ceramics |
✓ |
|
Molybdenum |
✓ |
|
Magnesium |
✓ |
|
Nylon |
✓ |
|
Plastic |
✓ |
|
Santoprene |
✓ |
|
Silicon carbide |
✓ |
|
Silicon steel |
✓ |
|
Silicon wafers |
✓ |
|
Paint |
✓ |
|
Ceramics |
✓ |
Technical specifications
1. Laser power: 20, 30, 50, 60, 80, 100, 120 W at customer's choice, also available Mopa versions for color engraving
2. Laser type: fiber optic
3. Marking speed: 7000 mm/s
4. Marking field: from 70x70 to 300X300 mm
5. Laser: JPT, Max, Raycus, IPG at customer's choice
6. Power supply: 110 V 50/60 Hz, 220 V 50/60 Hz.
7. Laser wavelength: 1064 nm.
8. Windows: XP / 7 / 8 / 10
9. Software: EzCAD2 (standard)
10. Supported formats: PLT, DXF, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.
11. Cooling: air.
12. Positioning: two red indicators.
13. Total power: 500 W
14. Package dimensions: 1100X1200X700 mm.
15. Weight: from 50 kg.
Modifications to the design are possible at the customer's request.
Buy a laser marker from Titan Technics.
All products are 100% high-quality, the purchase is accompanied by a guarantee. Post-warranty service is provided for all customers 24/7.
Sincerely, The team of Titan Technics LLC | Titan Techniks LLC
|
Material |
Fiber Laser |
|
Stainless Steel |
✓ |
|
Aluminum |
✓ |
|
ABS plastic |
✓ |
|
Brass |
✓ |
|
Carbon fiber |
✓ |
|
Carbon nanotube |
✓ |
|
Cobalt chrome steel |
✓ |
|
Colored delrin |
✓ |
|
Copper |
✓ |
|
Diallyl phthalate |
✓ |
|
Glass-filled PEEK |
✓ |
|
Glass-filled Teflon |
✓ |
|
Metal-ceramics |
✓ |
|
Molybdenum |
✓ |
|
Mild Steel |
✓ |
|
Nylon |
✓ |
|
Plastic |
✓ |
|
Santoprene |
✓ |
|
Silicone carbide |
✓ |
|
silicon steel |
✓ |
|
silicon plates |
✓ |
Buy a laser marker from Titan Technics. Modifications to the design are possible at the customer's request.
All products are 100% high-quality, the purchase is accompanied by a guarantee. Post-warranty service is provided for all customers 24/7.
Best regards. Team of Titan Techniks LLC
